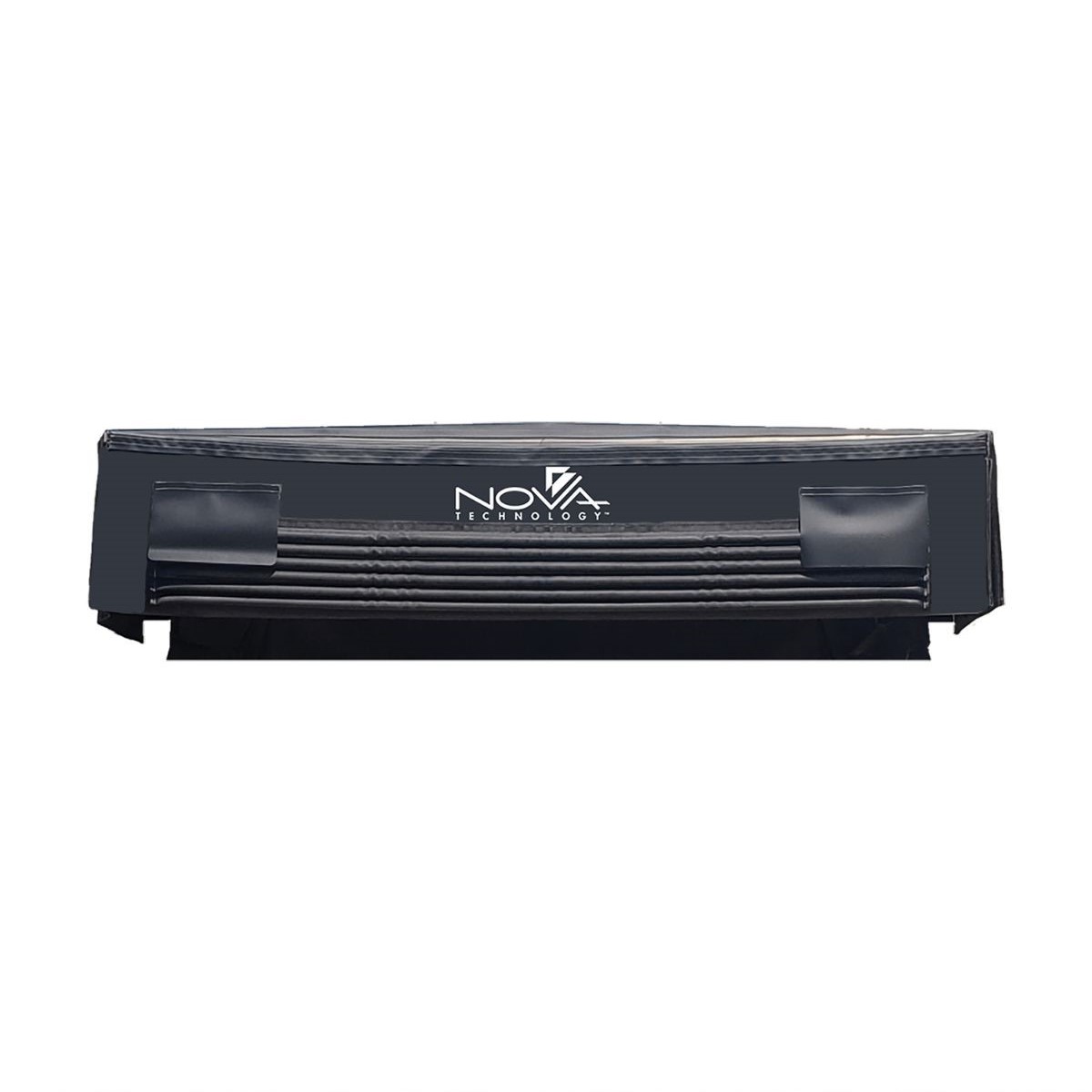

Rain Deflector Xtreme (RD) Series Dock Shelter

DESIGNED TO FIT OVER ALL SEALS AND ALMOST ANY TYPE OF SHELTER

NOVA Rain Deflector Xtreme—provides an excellent barrier to water runoff from the tops of trailers entering the building, especially at declined docks. The RD Xtreme is designed for docks that service a wide range of vehicles and can seal most trailer sizes. Designed for versatility, it is compatible with all docks seals and most dock shelters.

FEATURES AND BENEFITS

  • Multi-layer water defense system
  • Mounts over existing seals and shelters or can be combined with a new installation for a seamless product
  • Covers truck heights ranging from 12’6 to 13’6-inches
  • 20-inch projection beyond the seal/shelter for greater coverage
  • 5-inch foam-filled pad deters water runoff from trailer tops
  • High-density polyurethane foam for added resiliency
  • Frame is made from pressure-treated, kiln-dried wood
  • Side flaps with stay pockets for draft protection
  • Heavy-duty steel brackets provide reinforced snow load support
  • Raked header for enhanced water drainage
  • Header has a translucent fiberglass top
  • Face is removable for quick replacements when necessary
  • All sew lines are lock-stitched and reinforced with UV-resistant thread

OPTIONS

  • Custom projection up to 48-inches total from wall
  • Traditional head curtain
  • Pad drop over 44-inches
  • Frame cut-outs for obstructions
  • Galvanized steel head frame
  • Spring steel stays
  • Overhead cable supports*

*Cables required for certain applications
